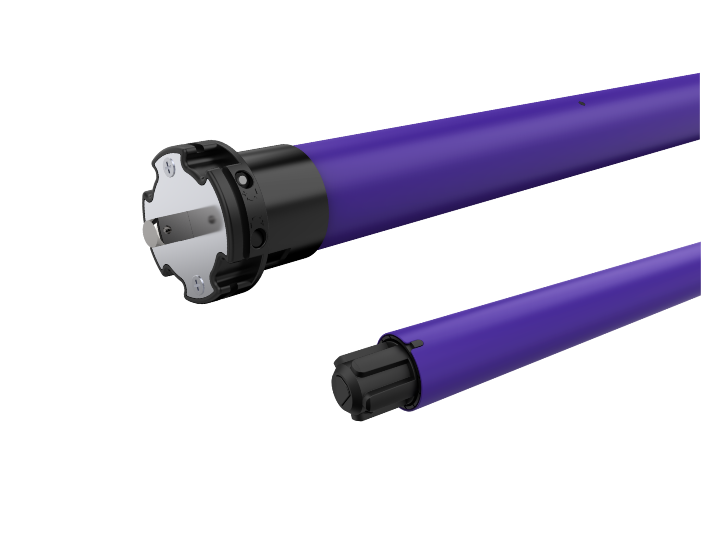

45mm Tubular Motor RF+Electronic Limit
Adopting plum output shaft structure design,no slip
Helical gear silent gearbox
Enhanced copper heat sink design
Product feature
Input AC220V
High-precision gearbox design
Built-in
brake system
Directly to Smart Home
-
Adopting plum output shaft structure design,no slip
-
Helical gear silent gearbox
-
Enhanced copper heat sink design
-

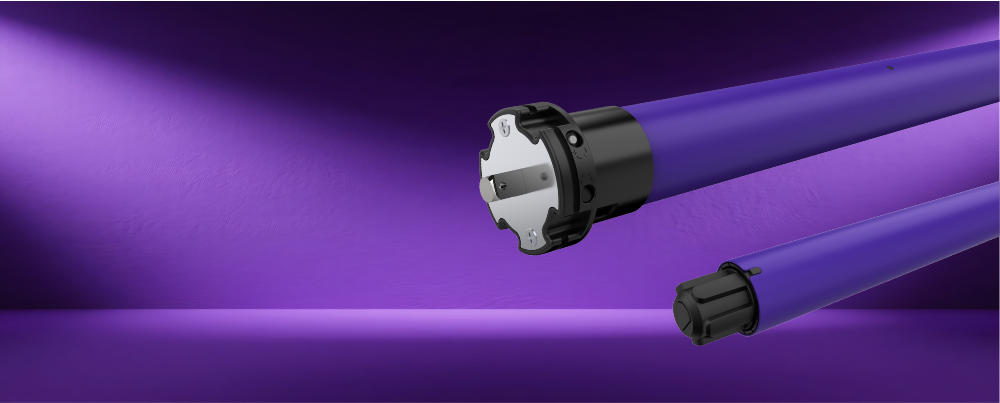

Built-in brake system
-
Remote control
-
High torque
5 year warranty
Long warranty
Quality assurance
After-sales worry-free
-
Built-in brake system
-
Remote control
-
High torque
Product parameter
D10322
K45-EL-10-18 Tubular Motor X
10N.m 18rpm 75W ≤28db 523mm
D10316
K45-EL-15-28 Tubular Motor X
15N.m 28rpm 150W ≤32db 547mm
D10317
K45-EL-20-18 Tubular Motor X
20N.m 18rpm 150W ≤32db 547mm
D10318
K45-EL-20-28 Tubular Motor X
20N.m 28rpm 180W ≤45db 577mm
D10319
K45-EL-30-18 Tubular Motor X
30N.m 18rpm 180W ≤45db 567mm
D10320
K45-EL-40-18 Tubular Motor X
40N.m 18rpm 200W ≤45db 577mm
D10321
K45-EL-50-12 Tubular Motor X
50N.m 12rpm 200W ≤45db 577mm
Input voltage(V)
AC220
Frequency(Hz)
50/60
Protection grade(IP)
IP44
Control method
RF
Weight (KG)
2.0
QTY/CTN (PCS)
10

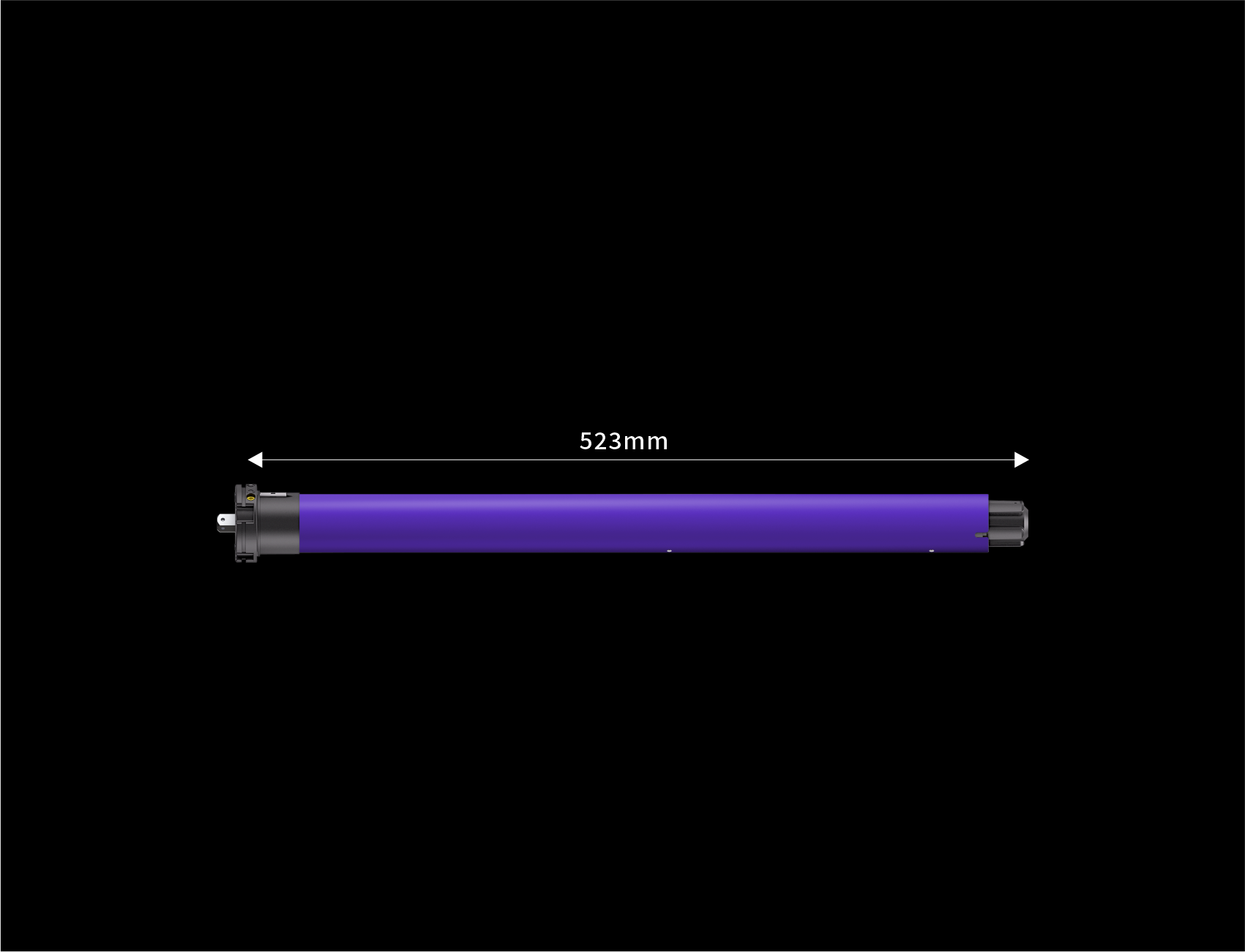

Product size
100% Full Test On Production Line
Noise test
Performance test
High voltage test
Appearance inspection
Torque test
Grounding test
Voice control test
Network connection test
Operate video
-
IP66 Protection Level NOVO 45 Tubular Motor
Solutions
Tubular Motor
The electric roller blind is composed of a tubular motor, sunshade fabric and other accessories (such as tubes, etc.).
The motor has low noise, simple and convenient limit adjustment, and accurate and reliable limit control. It can stop at any position in the middle. There are many control options, including radio remote control (single control, group control, and master control functions) and wall wired switch control. Easy to operate and works quietly and smoothly.
Accessories
-
D20606/D20506
Ф65 crown/Ф65 adapt wheel (cinquefoil）
-
D20607/D20509
Ф90-50 crown/Ф90 adapt wheel（cinquefoil）
-
D20621/D20622
Crown-φ63 groove tube/Adapt wheel-φ63 groove tube
-
D20628/D20627
φ85 crown/φ85 adapt wheel
-
D20629/D20630
φ60 octagonal crown/φ60 octagonal adapter wheel
-
D20635/D20636
φ70 octagonal crown/φ70 octagonal adapter wheel
-
D20629/D26172
φ60 octagonal crown/60 longer octagon adapt wheel
-
D20608
Ф90-60 crown
-
D20623
adapt wheel-φ55 tube
-
D20651/D20652
φ70 zip screen crown/φ70 zip screen drive
-
MH40091
Φ43 drive
Product application
NOVO has always adhered to the route of independent product R&D, and technical patent inventions
and is committed to creating more beautiful products that integrate quality, technology and art.
Light Roman blind
Roman blind
Roller blind
Shangri-laBlind
