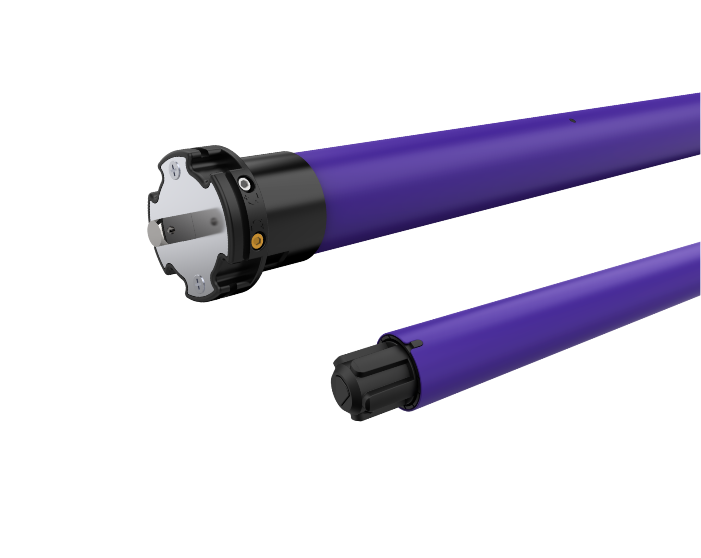

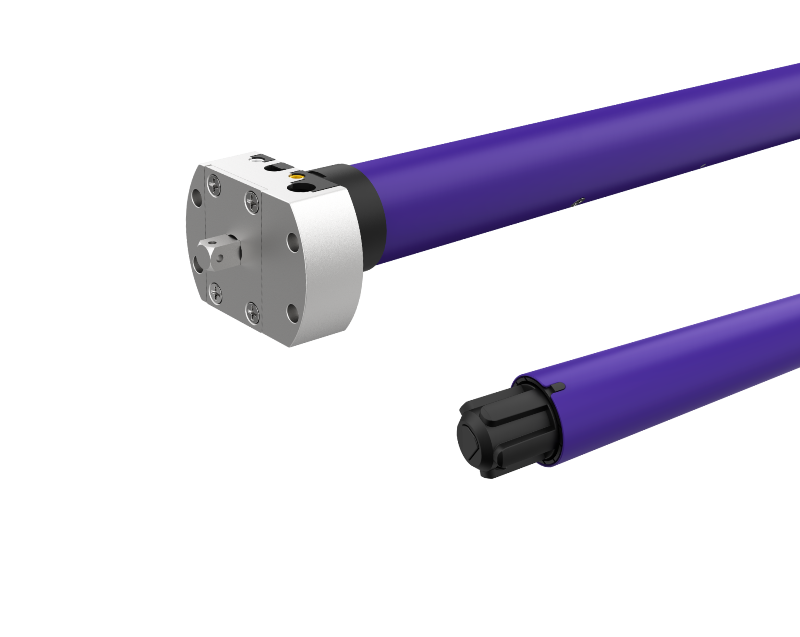

45mm Manual Tubular Motor Mechanical Limit
Adopting plum output shaft structure design,no slip

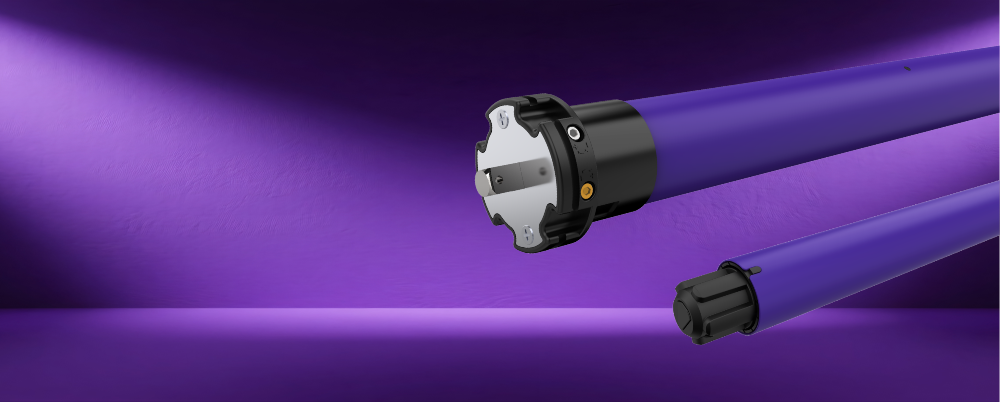

Helical gear silent gearbox
Enhanced copper heat sink design
Product feature
Input AC220V
High-precision gearbox design
Helical gear
silent gearbox
Directly to Smart Home
-
Adopting plum output shaft structure design,no slip
-
Helical gear silent gearbox
-
Enhanced copper heat sink design
-
Built-in brake system
-
High torque
-
Silent working
5 year warranty
Long warranty
Quality assurance
After-sales worry-free
-
Built-in brake system
-
High torque
-
Silent working
Product parameter
D10315
K45-TPM-20-18 Tubular Motor X
20N.m 18rpm 150W 628mm
D10314
K45-TPM-30-18 Tubular Motor X
30N.m 18rpm 180W 650mm
D10311
K45-TPM-40-18 Tubular Motor X
40N.m 18rpm 200W 668mm
D10312
K45-TPM-50-12 Tubular Motor X
50N.m 12rpm 200W 668mm
Input voltage(V)
AC220
Frequency(Hz)
50/60
Noise index(db)
≤45
Protection grade(IP)
IP44
Control method
wire control+manual
Weight (KG)
QTY/CTN (PCS)
10

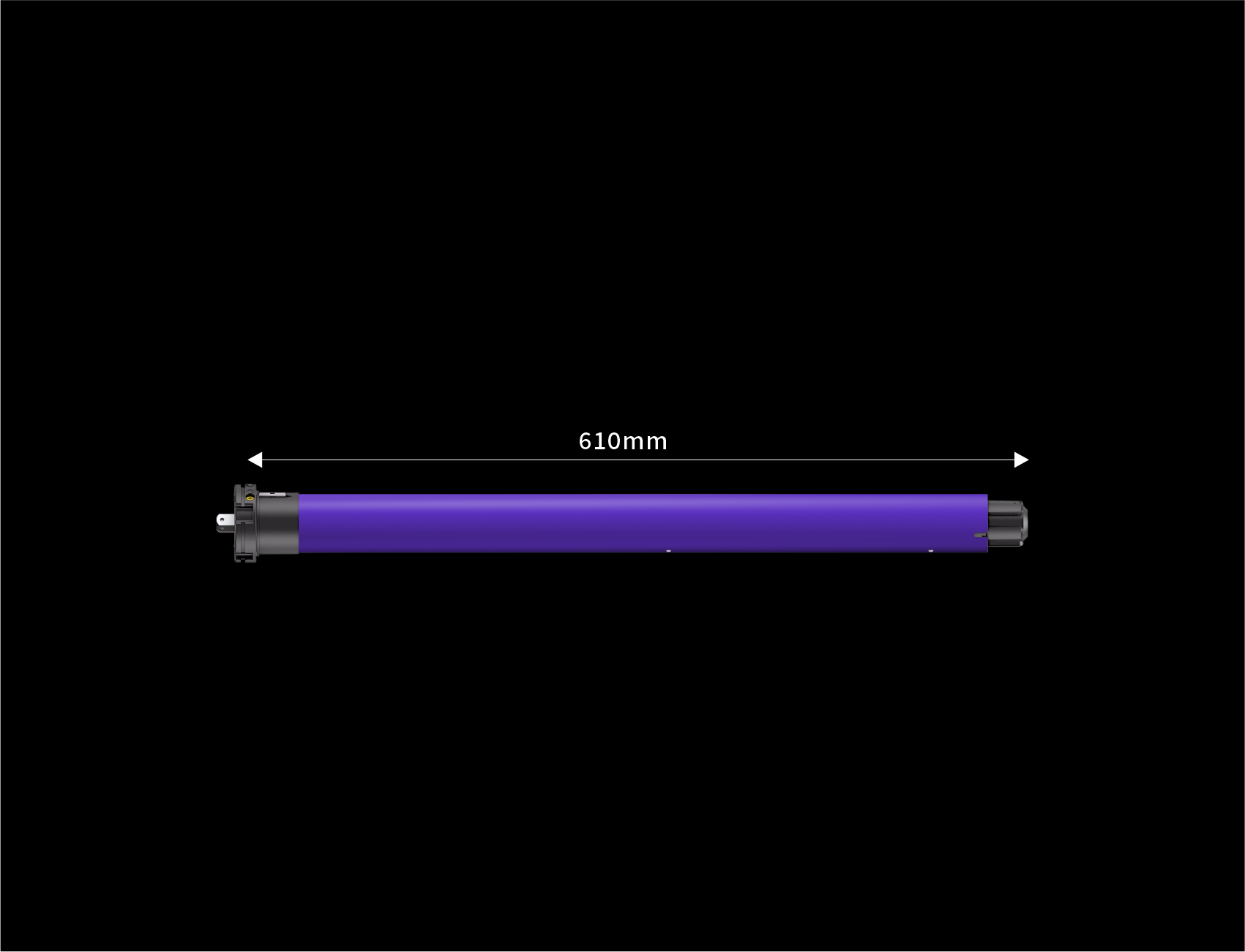

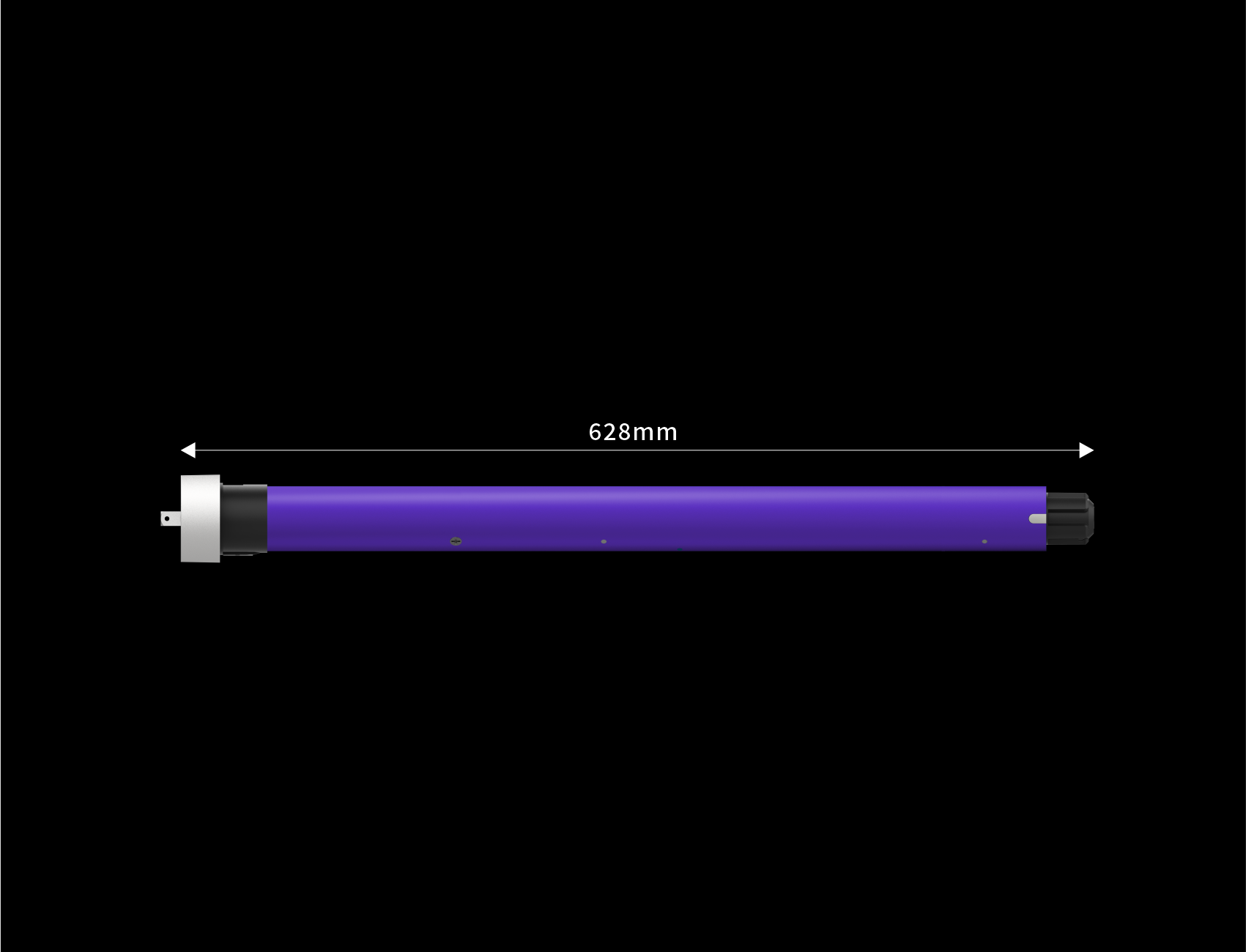

Product size
100% Full Test On Production Line
Noise test
Performance test
High voltage test
Appearance inspection
Torque test
Grounding test
Voice control test
Network connection test
Solutions
Tubular Motor
The electric roller blind is composed of a tubular motor, sunshade fabric and other accessories (such as tubes, etc.).
The motor has low noise, simple and convenient limit adjustment, and accurate and reliable limit control. It can stop at any position in the middle. There are many control options, including radio remote control (single control, group control, and master control functions) and wall wired switch control. Easy to operate and works quietly and smoothly.
Accessories
-

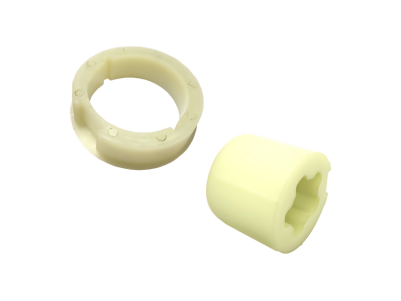

D20606/D20506
Ф65 crown/Ф65 adapt wheel (cinquefoil）
-

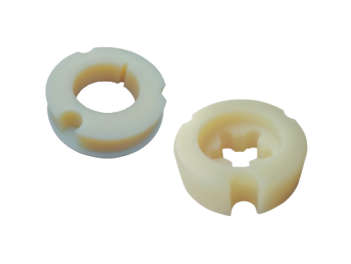

D20607/D20509
Ф90-50 crown/Ф90 adapt wheel（cinquefoil）
-

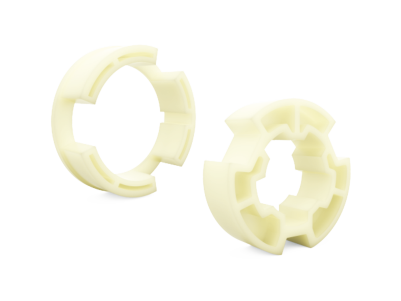

D20621/D20622
Crown-φ63 groove tube/Adapt wheel-φ63 groove tube
-

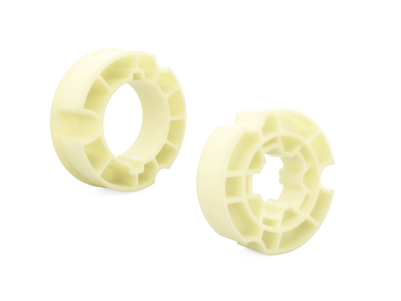

D20628/D20627
φ85 crown/φ85 adapt wheel
-

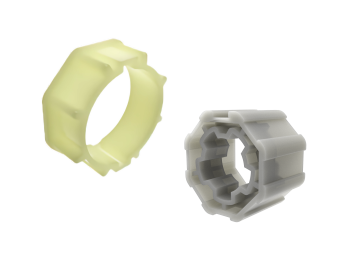

D20629/D20630
φ60 octagonal crown/φ60 octagonal adapter wheel
-

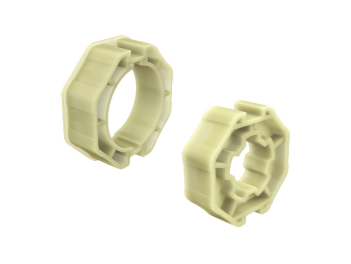

D20635/D20636
φ70 octagonal crown/φ70 octagonal adapter wheel
-
D20629/D26172
φ60 octagonal crown/60 longer octagon adapt wheel
-

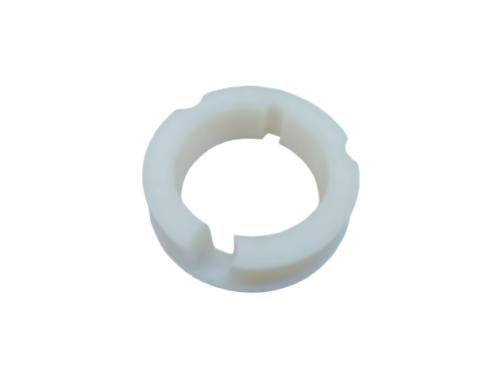

D20608
Ф90-60 crown
-

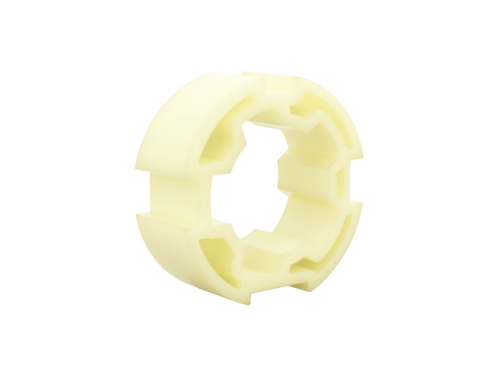

D20623
adapt wheel-φ55 tube
-
D20651/D20652
φ70 zip screen crown/φ70 zip screen drive
-
MH40091
Φ43 drive

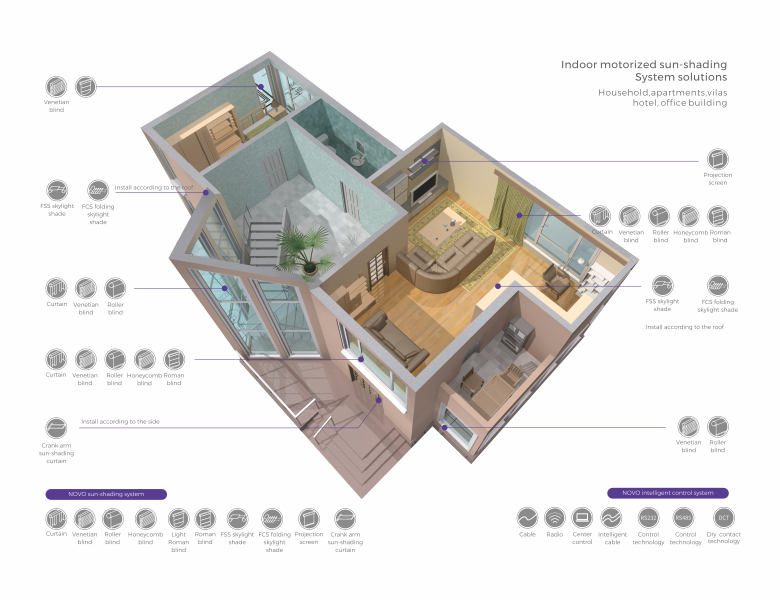

Product application
NOVO has always adhered to the route of independent product R&D, and technical patent inventions
and is committed to creating more beautiful products that integrate quality, technology and art.

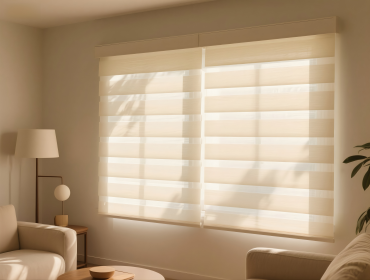

Light Roman blind

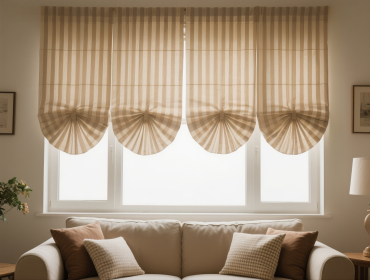

Roman blind

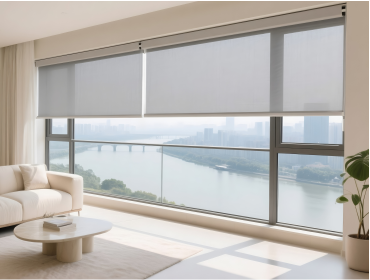

Roller blind
Shangri-laBlind
