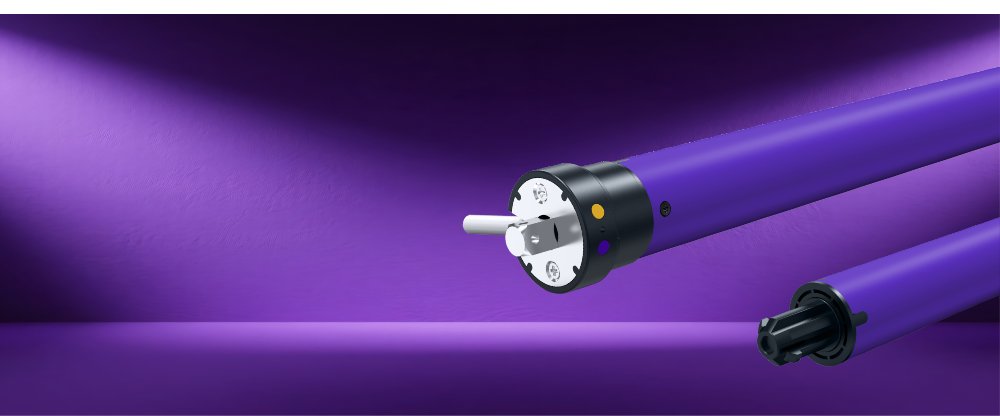

35mm Tubular Motor RF+Electronic Limit
Helical gear silent gearbox
Smart speaker control
Adopting plum output shaft structure design,no slip
Product feature
Input AC110V or AC220V
High-precision gearbox design
Helical gear
silent gearbox
Directly to Smart Home
-
Adopting plum output shaft structure design,no slip
-
Mobile remote control
-
Helical gear silent gearbox
-
Built-in brake system
-
Electronio Limit third limit
-
Remote control
5 year warranty
Long warranty
Quality assurance
After-sales worry-free
-
Built-in brake system
-
Electronio Limit third limit
-
Remote control
Product parameter
D10122
K35-EL-6-28 Tubular Motor X
6N.m 28rpm AC220V 50/60Hz
D10123
K35-EL-10-17 Tubular Motor X
10N.m 17rpm AC220V 50/60Hz
D10373
K35-EL-6-28 Tubular Motor X
6N.m 28rpm AC110V 60Hz
D10374
K35-EL-10-17 Tubular Motor X
10N.m 17rpm AC110V 60Hz
Power(W)
115
Noise index(db)
31.2
Motor length(mm)
515
Protection grade(IP)
IP44
Weight (KG)
1.3
QTY/CTN (PCS)
20

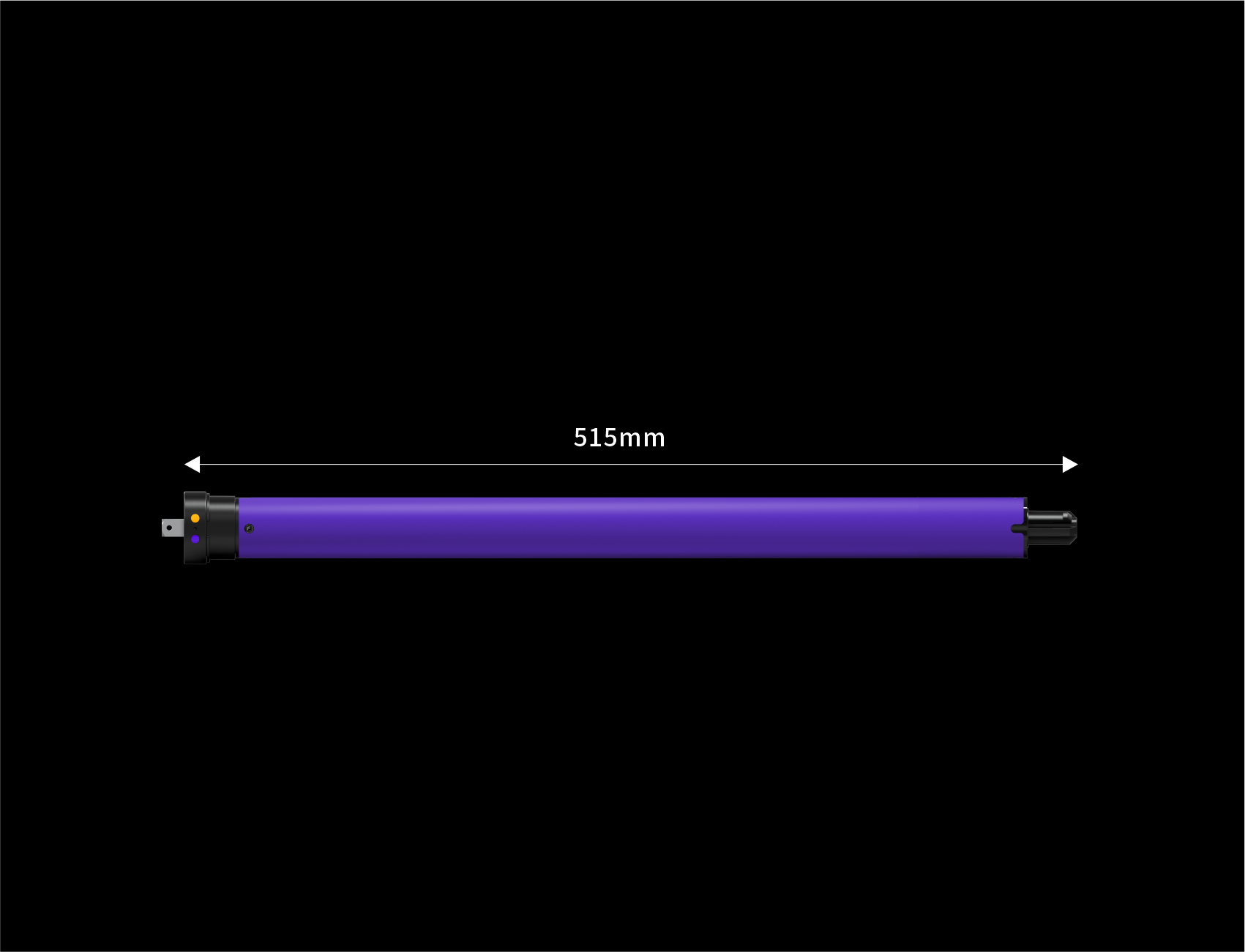

Product size
100% Full Test On Production Line
Noise test
Performance test
High voltage test
Appearance inspection
Torque test
Grounding test
Voice control test
Network connection test
Operate video
-
Stall protection IP65 protection level NOVO 35mm tubular motor
Solutions
Tubular Motor
The electric roller blind is composed of a tubular motor, sunshade fabric and other accessories (such as tubes, etc.).
The motor has low noise, simple and convenient limit adjustment, and accurate and reliable limit control. It can stop at any position in the middle. There are many control options, including radio remote control (single control, group control, and master control functions) and wall wired switch control. Easy to operate and works quietly and smoothly.
Accessories
-
D20513/D20514
Ф47 crown/Ф47 adaptable wheel
-
D20601/D20511
Ф40 octangle tube crown/Ф40 octangle adapt wheel（cinquefoil）
-
D20603/D20502
Ф40 crown/Ф40 adapt wheel (cinquefoil)
-
D20618/D20617
Crown for φ50 groove tube/Adapt wheel for φ50 groove tube（cinquefoil）
-
D20620/D20619
Crown for φ55 groove tube/Adapt wheel for φ55 groove tube（cinquefoil）
-
MH40086/MH40087
-
MH40092+MH40093
Φ53 crown/Φ53 drive
Product application
NOVO has always adhered to the route of independent product R&D, and technical patent inventions
and is committed to creating more beautiful products that integrate quality, technology and art.
Roman blind
Light Roman blind

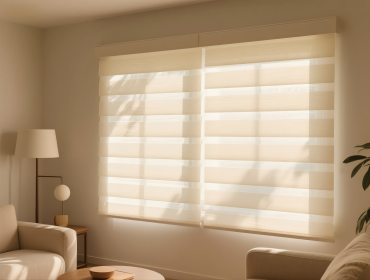

Roller blind
Shangri-laBlind
